Studio replacing Lab

[jonathan_haas]

I got the same behaviour.

[joost]

Do you have a node_modules folder in sites/studio and if so, can you remove it and try to start the studio again?

[joost]

FYI: this is a webpack doesn’t have a JSX loader situation, in case people are curious

[Benjamin_F]

Yes, it worked, thank you. I ran rm -rf sites/studio/node_modules and npm run studio, and the studio is now running properly in my browser.

[Benjamin_F]

In case anyone was wondering what the Studio looks like, the initial experience is about the same with Standalone vs. Repository:

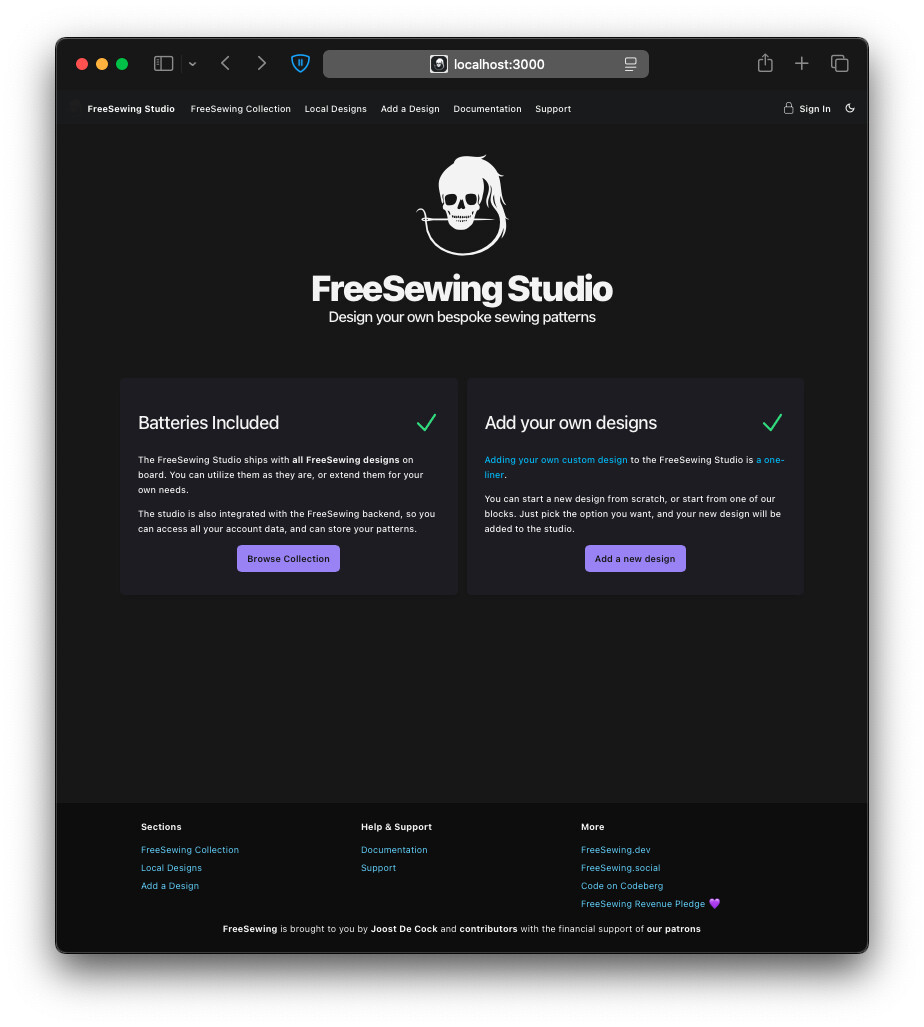

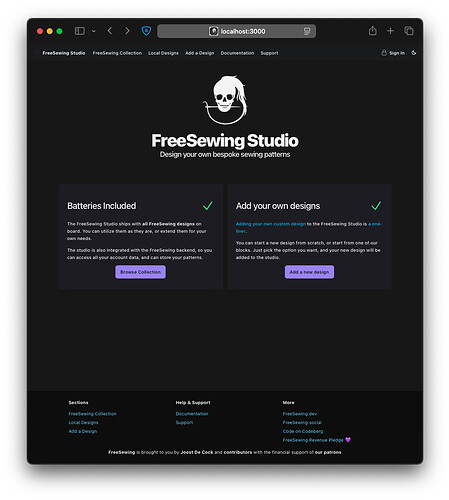

Standalone Studio:

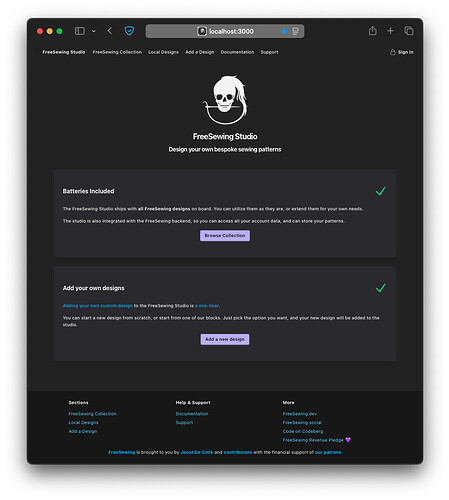

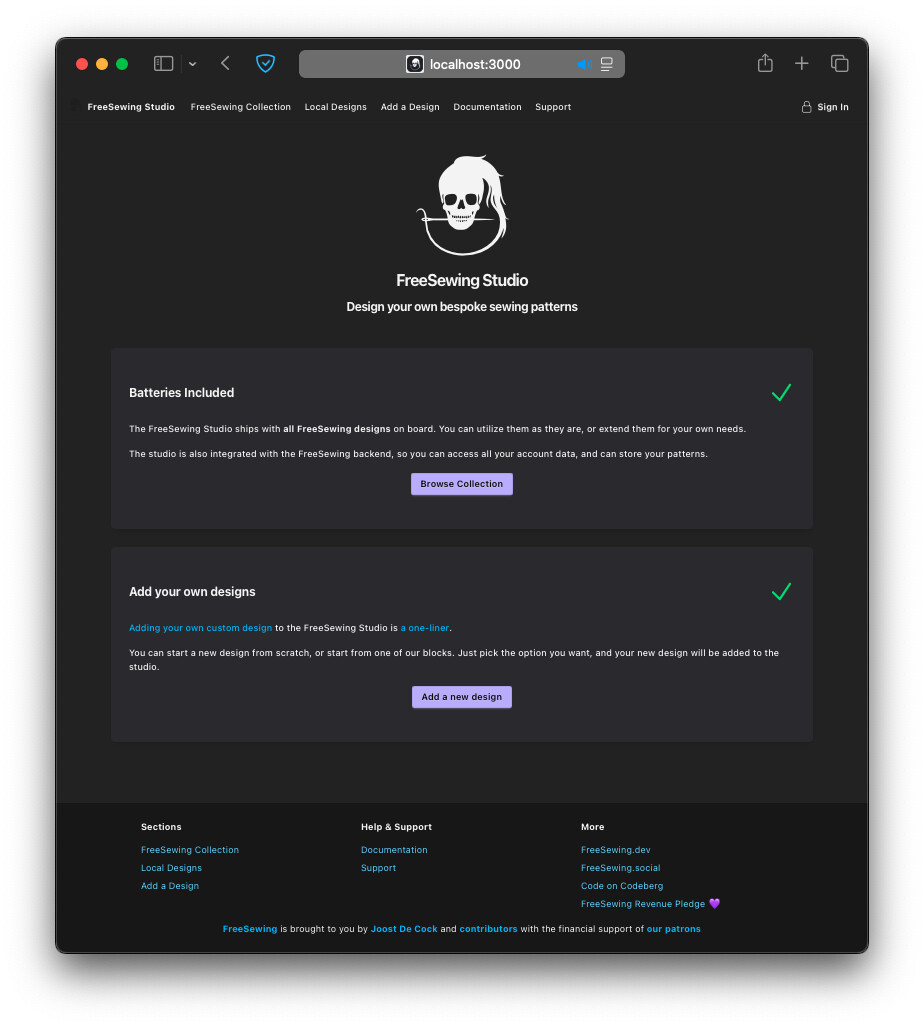

Repository Studio:

[Benjamin_F]

Current issues with the repository studio:

• After npm run kickstart or npm run reconfigure, npm run studio will result in compile errors. Need to run rm -rf sites/studio/node_modules.
• The repository studio incorrectly says the command to add a new design npm run add design. Instead the correct command is npm run add.
• The npm run add interactive script incorrectly asks to select a template to use. Instead, the script always just installs the “from scratch” box template, so it shouldn’t provide you with the choice.
• npm run add does not add an about.json file for the new design. As a result, one gets generated, but it is missing the “id”. As a result, in package.json, the “name” is set to “@freesewing/undefined”.
• Due to another bug, plugin-theme is also defined with a “name” of “@freesewing/undefined”. As a result, npm run studio then fails because there are 2 “@freesewing/undefined” packages.
• As a result of previous issues, no symlink gets created in node_modules/@freesewing for the new design, requiring another kickstart.
• npm run add installs old v3 code for the new design that uses the now-removed data.mjs file. As a result, npm run kickstart fails with ERR_MODULE_NOT_FOUND.

The steps to work around the issues and get the repository studio running with a new design:

1. npm run kickstart
2. rm -rf sites/studio/node_modules
3. npm run studio (just to verify that the repository studio is working, before trying to add a new design). (Halt the repository studio.)
4. npm run add and add the new design.
5. Edit plugins/plugin-theme/package.json and change @freesewing/undefined to @freesewing/plugin-theme
6. Edit plugins/plugin-theme/about.json and change "name" to "id".
7. Edit designs/<design_name>/package.json and change @freesewing/undefined to @freesewing/<design_name>.
8. Edit designs/<design_name>/about.json and add "id": "<design_name>",
9. Edit designs/<design_name</src/index.mjs, and change the import { data } from '../data.mjs' line to import about from '../about.json' with { type: 'json' }, and change data, to data: about,, and add about to the list of named exports.
10. npm run kickstart
11. rm -rf sites/studio/node_modules
12. npm run studio

[joost]

This is great summary @Benjamin_F thanks so much

(as far as I know) All of the issues you mentioned above are resolved now:

• The JSX issue and the local node_modules folder were caused by how we configured the dependencies inside the workspace. I have fixed that, so there’s no need to remove that folder (sorry for closing the PR that added that)
• The fact that now about.json was generated, and that the template you selected was ignored, was because it was using the old v3 template, rather than the new v4 template
• I’ve updated the content in the monorepo studio to display the correct command

Essentially, everything should be ok now.
